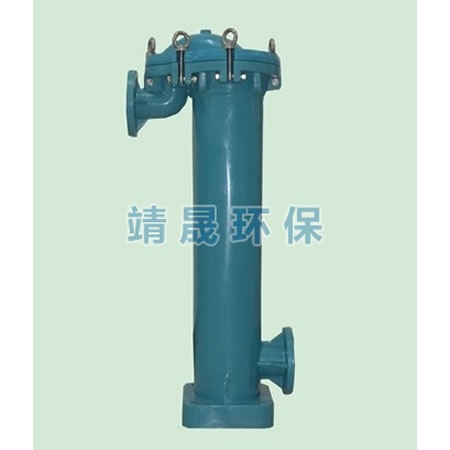

Size 2 PP Filter Housing

Plastic bag filter housing ST402PPR product features:
1. special material: PP plastic material filter can be used for high temperature and high concentration of hydrochloric acid, sulfuric acid, aqua regia and other strong acid and alkali solution filtration and most of the chemical liquid filtration.

2. the structure is simple: filter by the main body, net blue, cover composition.
Main body: The filter cavity and the inlet and outlet flanges, the upper flange of the main body, the installation of the square base and the supporting net blue fixing piece are integrally injection-molded without any thread and welding to ensure the product is sealed safely without any leakage and damage; Blue bolt holes from the multi-function, with GB, American standard, Japanese standard, German standard flange; installed square base enhances the safety and stability of the product, easy to fix in different needs of the place; four-hole mounting square base Insole elevation, easy to clean the interior of the product and filter media emissions.
Net blue: net blue one form, blue net appearance design distribution, orderly prominent solid square column, increased net blue pressure resistance.
Cover: The cover is integrally formed, the cover made a special design, won the national recognition of the patent, enhanced cover the pressure, can withstand 1.2Mpa pressure.

3. simple and safe: According to the user's filtration accuracy and the needs of different filter media, the user can choose different filter accuracy of the filter bag and plastic filter of different materials to achieve the quality of the filter needs; filter bag ring mouth.

PP Bag Filter Housing

Plastic bag filter housing installation operation and maintenance:
Change the filter bag:
1. cut off the pump power and lock the pump power can not be turned on until the pump is running completely stopped.
2. close the filter inlet valve.
3. close the filter outlet valve.
4. open the drain valve, and then open the exhaust valve, the filter discharge liquid.
5. the filter should be no internal pressure.
6. check the pressure gauge pressure should be zero pounds.
7. additional external force Loosen the metal rings on the filter cover counterclockwise, 6 rings should be symmetrical loose, respectively, until the separation of the lid.
8. carefully remove the filter bag, insert the new filter bag.
9. the recommended pressure filter bag is 2 filter bag.

Install the plastic filter housing
1. with a small amount of lubricant to clean the o-ring gasket and O-ring gasket groove health.
2. the lid into place alignment, 6 rings and washers were placed in the top cover.
3. Manually and symmetrically tighten the metal lifting ring clockwise symmetrically, and then tighten the lifting ring symmetrically with the external force so that the lower end surface of the cover closely touches the upper end surface of the main body.
4. close the drain valve and exhaust valve.
5. open the outlet valve, and then open the inlet valve.
6. clean the outer surface of the filter, and do not scratch the outer surface.
7. Close the power, start the pump, check the lid seal for leakage and pressure gauge pointer is in the appropriate scale range.

Filtration Specification:
Inlet & Outlet: DN65 Flange
Filtration area: 0.5 m2
Flow rate: 45 m3/h
Design pressure: 10 bar
Housing material: PP
Optional micron rate: 0.5um, 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um

Filtration system application:
Hydrochloric acid, Sulfuric acid, Aqua regia and other strong Acid and Alkali solution filtration and most of the chemical liquid filtration.



PP BAG FILTER HOUSING MODEL TABLE

Model Max Flow(m3/h) Max pressure Max Temp Pipe Size Material
S405-PP 23 6bar 60ˇăC 2"NPT PP
S405PPH50W 30 6bar 90ˇăC 2" Flange PP
S402-PP 40 6bar 60ˇăC 2"NPT PP
S402-UPVC 40 6bar 60ˇăC 2"NPT &Flange UPVC
ST402-PPR 40 10bar 100ˇăC 2.5" Flange PP
S6-PP 10 6bar 80ˇăC 1.5"NPT PP
S402PPH50W 40 6bar 80ˇăC 2"Flange PP
