Home > Filtration Products > Nylon filter bag

Nylon mesh filter bag

NYLON MONOFILAMENT MESH
Also operating on the principle of surface filtration, monofilament mesh filter bags are manufactured from mesh materials in which each strand is a single filament.The non-deformable filaments are woven in a specific, consistent pattern and fusion welded for extra strength. Monofilament meshes are structurally very strong and are available in nylon (STANDARD).
Our felt bags are designed to withstand higher solid loading, and are suitable for applications using vessel or open filtration systems. With FQ filter bags, you can count on a quality product every time.
We makes its own fiber to produce the felt material used in our felt filter bags inhouse, guaranteeing the highest quality.

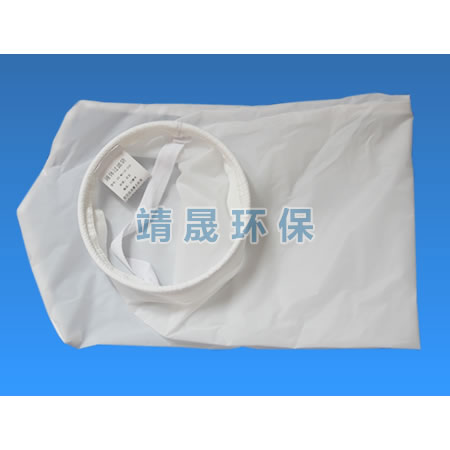

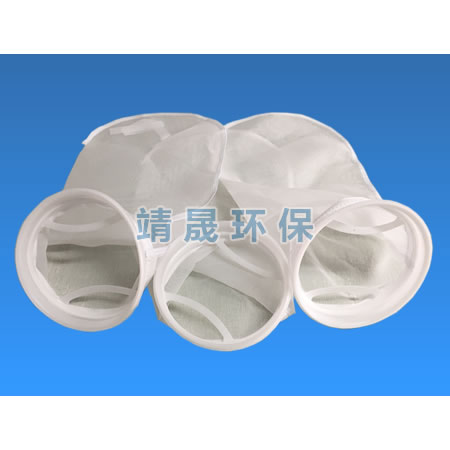

nylon mesh filter bag

If your filter bag is different from our filter bag, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.



Filter bags Specifications

Filter Media
Felt, nylon
Felt, polyester
Felt, polypropylene

Maximum Operating Temperature Polypropylene: 200-220° F (93-104° C)
Polyester: 275-325° F (135-162° C)
Nylon: 275-300° F (135-149° C)

Micron Rating Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200
Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200
Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600

Size 1: 7” x 16” (17.78 cm x 40.64 cm)
2: 7” x 32” (17.78 cm x 81.28 cm)
3: 4” x 8.25” (10.16 cm x 20.96 cm)
4: 4” x 14” (10.16 cm x 35.56 cm)
5: 6 ” x 22” (15.24 cm x 55.88 cm)

Collar Ring Polypropylene ring
Polyester ring
galvanized steel ring
Stainless steel ring
Rope

Remarks The length of filter bags can be customized.
If your filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.
Please send us the specification detail by email for quote, thanks.
